Products Description
Leon Series Hanging Fan is mainly used for animal husbandry, poultry house, livestock breeding, etc.
Belt Drive Hanging Fan
LNB53 LNB50
|
Model |
Outer Size |
Blade Diameter |
Motor rotational speed(rpm) |
Air Volume(m3/h)(0Pa) |
Noise decibels |
Motor |
|
LNB53 |
1435*1435mm |
1350mm |
1400 |
45700
|
≤65 |
1.1KW/1.5HP |
|
LNB50 |
1375*1375mm |
1270mm |
1400 |
41600 |
≤65 |
1.1KW/1.5HP |
Direct Drive Hanging Fan
LND50 LND36
|
Model |
Outer Size |
Blade Diameter |
Motor rotational speed(rpm) |
Air Volume(m3/h)(0Pa) |
Noise decibels |
Motor |
|
LND50 |
1375*1375mm |
1270mm |
560 |
35000
|
≤65 |
0.55KW/0.75HP |
|
LND36 |
1000*1000mm |
915mm |
560 |
24000 |
≤65 |
0.37KW/0.5HP |
Material:
|
Frame |
275g/sqm hot galvanized iron,thickness 1.0mm.
Cowshed fan adopts the thickened galvanized layer to enhance the thickness of the frame, and the eversion along the diversion design improves the ventilation, reduces the vibration and noise, and increases the stability.
|
|
Fan blades: |
1270mm,NSDCC material,after dynamic balance testing,thickness 1.5mm,
Fan blade is made of Krupp stainless steel by punch forming ,no dust ,attractive and durable.Special blades shape design ensure large air volume,no deformation,no broken,keep air volume same all the way.
|
|
Motor: |
Motor:1.1kw,380v,50hz,3phase,also can be Customized.
Both Chinese famous motor and Siemens motor are available,Motor voltage and frequency could be customized.Chinese famous motor,special design for fan,the first one put forward the phase lack protection davice which could power off when shortage of electricity.Motor protection grade IP55,insultaion Class:Grade F
|
|
Bearing |
C&U bearing,Mitsubishi belt from Japan. Fan bearing adopts imported double-row bearing with special waterproof design,water can`t enter. Hight strength,lower noise,maintenance free and long service life.
|
|
Protecting mesh: |
Front and Back protecting mesh is optional.
|
|
Screw: |
Standard parts coated with DACROMET technology to prevent rust and have a longer service life
|
Product advantage:
1. Low investment and low energy consumption.Large air volume, wide range of application (various types of livestock farms,
agricultural flowers greenhouse, industrial plants.Greenhouse seedlings, etc.)
2. Strong cooling.The temperature in summer can be reduced by more than 5-15 degrees, and the higher the temperature, the greater the range of cooling
3. The air is fresh and moist.High air cleanliness;
Delivery Time
Loading cow fans for our pakistan customer!

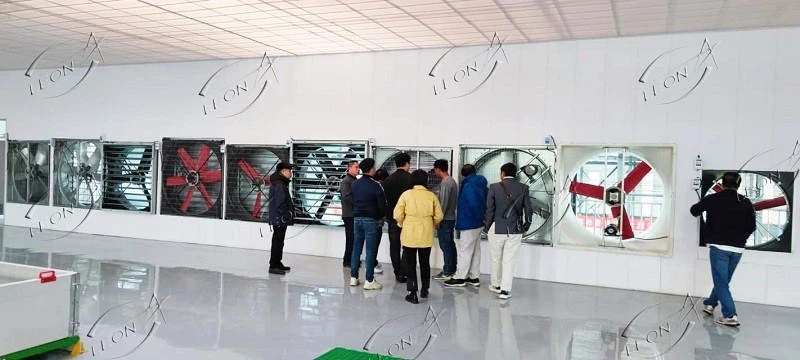

Customer visit
Warmly welcome the friends introduced by our old customers in Vietnam. We are taking the customer to visit the sample room.
Installation case
These are some cow fans installation case for our customer. LEON series hanging fan meets the needs of those asking for a simple and cost effective fan mainly used for breeding farms. It has the advantage of low noise, compact structure and beautiful appearance.
The ventilation condition of the cowshed has an important influence on the growth and development of cattle. A good ventilation environment is very beneficial to the growth and development of cattle.Therefore, higher requirements are put forward for the cowshed. In order to have better ventilation and ventilation environment for the cowshed, the cowshed fan must be used for ventilation and cooling.
