Name: China Farming Equipment Evaporative Air Cooler Suppliers, Manufacturers - Factory Direct Price - LEON MACHINERY
Brand: Leon
SKU: 170440304

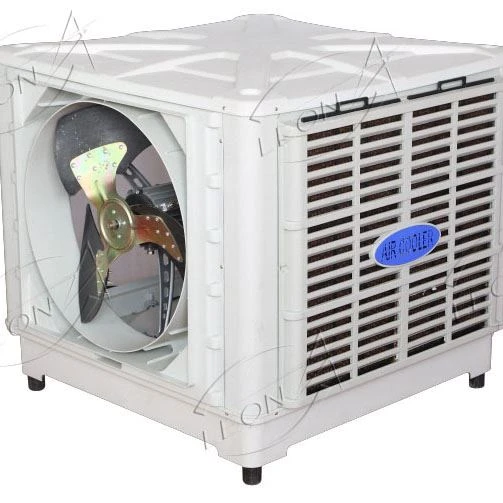

Farming Equipment Evaporative Air Cooler

Evaporative air coolers from Leon Machinery Ltd, equipment for industry and agriculture.

Send Inquiry

Description

Technical Parameters

LEON Series Model A Air Cooler

Model A Up Discharge

Model A Down Discharge

Model A Side Discharge

Item No.	LNA-180	LNA-220
Airflow	18000m³	22000m³
Power Supply	380V/220V	380V/220V
Working Current	2.7/4.8(A)	3.4(A)
Frequency	50HZ	50HZ
Power Consumption	1.1kw	1.5kw
Water Consumption	5-10(L/h)	10-15(L/h)
Water tank capacity	25	25
Air out Dimension	670×670mm	670×670mm
Physical Dimension	1100x1100x950mm	1100x1100x950mm
Net Weight	55 kgs	57 kgs
Fan Type	Axis-flow	Axis-flow
Effective Area	90-120 m2	100-150 m2

LEON Series Model B Air Cooler

Model B Up Discharge

Model B Down Discharge

Item No.	LNB-250
Airflow	25000 m3
Power Supply	380V
Working Current	4.5(A)
Frequency	50HZ
Power Consumption	2.2kw
Water Consumption	10-15(L/h)
Water tank capacity	25 L
Air out Dimension	670×670mm
Physical Dimension	1100x1100x1150mm
Net Weight	65kgs
Fan Type	Axis-flow
Effective Area	150-200 m2

LEON Series Model C Air Cooler

Model C Up Discharge

Model C Down Discharge

Item No.	LNC-300
Airflow	30000m³
Power Supply	380V
Working Current	5.8(A)
Frequency	50HZ
Power Consumption	3.0kw
Water Consumption	40(L/h)
Water tank capacity	45L
Air out Dimension	800×800mm
Physical Dimension	1280x1280x1250mm
Net Weight	120kgs
Fan Type	Axis-flow
Effective Area	200-250 m2

Spare Parts Show
