Full Automatic Broiler Pan Feeding System
Specifications:

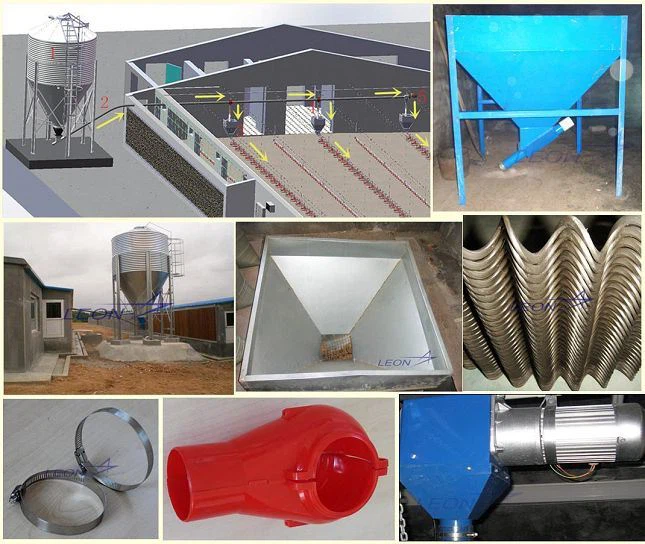

1. Main feed line system:
(1). Function:
|
Name |
Features |
|
Feed silo (Option 1) Manpower hopper (Option 2) |
Feed silo: 1).Silo with standard ladder and guard railing, safe and reliable; 2).Firm connection and good sealing performance; 3).Galvanized steel sheet, more than 10 years service life. 4).Size: 2.7T, 4.2T, 5.8T, 7.3T, 7.5T, 11T, 14T, 15T, 18T, 21.5T, 27.5T
Manpower hopper: 1).Galvanized steel sheet; 2).Size: 600Kg, 800Kg |
|
Driving motor |
China Famous brand Power:0.75Kw/1.1kw/1.5kw Voltage: 380V/220V/others, Three-phase/Single-phase , Frequency: 50Hz. |
|
Feed conveying pipe with auger inside |
Diameter of conveying pipe: Φ75mm, Material:PVC Helical spring auger is imported from South Africa, Feed ability: 1400Kg/h(maximum) Conveying length:60m |
|
Sensor |
Imported from Germany: IFM |
The system can convey feed from silo/manpower hopper into each feeding line hopper
2. Automatic pan feeding system:
(1). Function:
The system can convey feed from vice hopper(feeding line hopper) into each feed pan automatically. We usually install one sensor inside one feed pan which is near to the motor end. When sensor doesn't touch feed, driving motor will start working and convey feed, when sensor touch feed, driving motor will stop working.
|
Name |
Features |
|
V-shape bin (with hopper) |
Bin volume: 70Kg, 90Kg Material: hot-dip galvanized sheet Material thickness: 1mm |
|
Driving Motor |
China famous brand Power:0.75Kw/1.1Kw/1.5Kw, Voltage: 380V/220V/others Three-phase/Single-phase, Frequency: 50Hz, AC current |
|
Pan feeding lines |
Feed pipe: Diameter of feed pipe: Φ45mm Material: hot-dip galvanized sheet pipe with >275g/m2 zinc coating amount Helical spring auger: imported from South Africa, Feeding ability: 450Kg/h
Feed pan: 14/16 grilles, Pan bottom diameter: 330mm, Material: pure engineering plastic Feeding line specification: 4 feed pans/3 meter, 3 feed pans/3 meter
|
|
Sensor |
Imported from Germany: IFM, Time delay range: 0-2hours |
|
Lifting&suspension system |
It's very convenient to adjust feeding line height by winch. |
