Full Automatic Broiler Pan Feeding System Poultry Equipment Price

1. Main feed line system:

Function:

The system can convey feed from silo/hopper into each feeding line hopper

A: Option 1: Feed Silo

B: Option 2: Main feeding lines

1) Drive motor:
  Power: 0.75KW, Voltage:380V, Frequency:50HZ, Three-phase AC current

2) Delivery feeding system:
Feeding capacity: 1400KG / h  Maximum feeding length:60m

Radius of bending pipe: R1500 ( inclinable angle: 30 degrees )

Feed level sensor: import from Germany IFM.

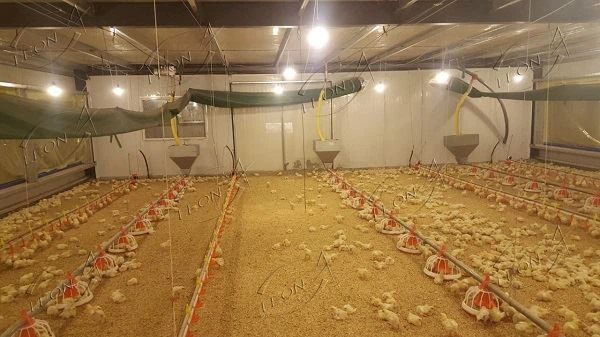

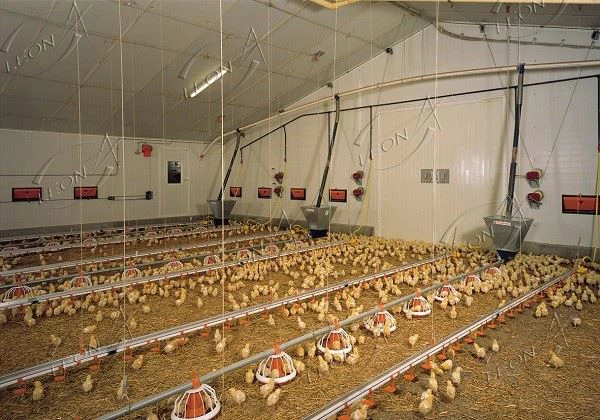

2.Automatic pan feeding system:

Automatic pan feeding system consists of driving device, hopper, conveying pipe, auger, suspension lifting device, anti-perching device and feed sensor. The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.

1) High-quality special driving reduction motor

Power: 0.75kw, Voltage:380V Frequency: 50HZ, Three-phase

2) V-shaped Hopper

Bin Volume: 115L, Hopper volume: 38L

Material: Hot-DIP galvanized sheet

3) Feeding Pipe

Diameter of conveying pip: Φ 45mm

Material: Hot-DIP galvanized steel pipe with the zinc coating amount of more than 275 g/㎡

3.Automatic nipple drinking system:

(1). Function:

The system can provide clean and fresh water to broiler chickens steadily, the water will be out when birds touch nipples.

Our nipple's rod can be movable in 360 degrees, easy to drink.

(2). Specification:

a) Waterline front system

This front part is controller of water, it's main function is to adjust water supplying pressure

and stabilize drinking volume, which is usually installed in control room, include:

b) Pressure regulator

Good regulating stability, high switching performance;

Water supply is sufficient&equality;

Recoil cleaning with good cleaning result, save time and water;

Good quality movable valve, easy to change.

c) Nipple drinker lines:

The drinking line specification: 15 nipples/3m, 12 nipples/3m

5. Cooling pad system:

(1). Function:

When the air goes through cooling pads, the heat will be taken down by the evaporation of water. So the air will be cooled before going into your poultry farms.

(2). Performance parameters:

Thickness: 100mm;150mm

Width: 300mm;600mm

Height(with frame): Normal size is: 1660mm, 1960mm, 2160mm, also can be customized.

Height(without frame): 1500mm, 1800mm, 2000mm

Frame: Aluminum alloy frame, Stainless steel frame, Galvanized sheet frame

Color: Brown,Black, Green, Brown&Green

6. Environment control system:

(1). Function:

The system can set suitable mode according to different stage birds raising requirements to temperature, humidity, through control on/off of ventilation fans, cooling pads, heaters even air inlets to achieve the aim of automatic controlling of chicken farm environment.

(2). Components:

a. Environment controller:

1) Option 1: Agrologic Brand, imported from Israel, Model: T607/T610/T616, they can achieve minimum ventilation-transition ventilation-tunnel ventilation differently.

2) Option 2: Our own brand: Leon, also with good function.

b. Temperature sensor and humidity sensor:

They can be connected to the environment controller to display indoor temperature and humidity;

c. Control boxes:

They have standard box body, use good quality electronic elements from great brands, such as CHNT, SIEMENS,SCHNEIDER, also have UPS and alarm device(for high/low temperature, power failure);

d. Lighting system;

e. Wire system.
