Chicken Broiler Floor Raising System

Our poultry equipment is made of quality mild steel and the surface is hot dip galvanized or zinc coated, strong and durable, the service life is up to 30 years.

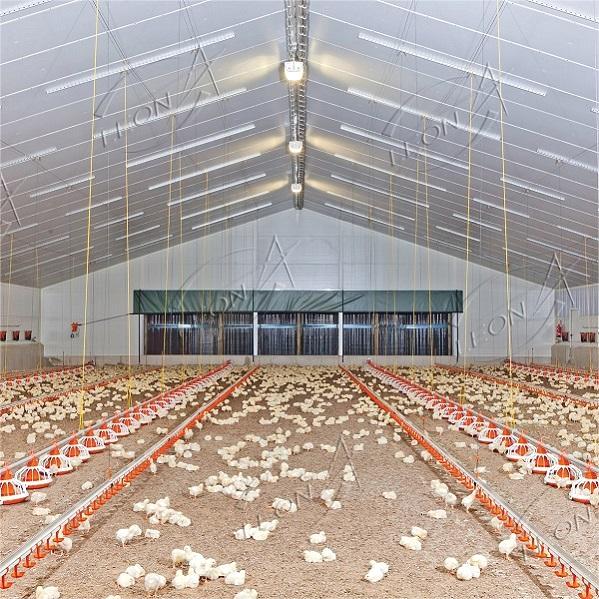

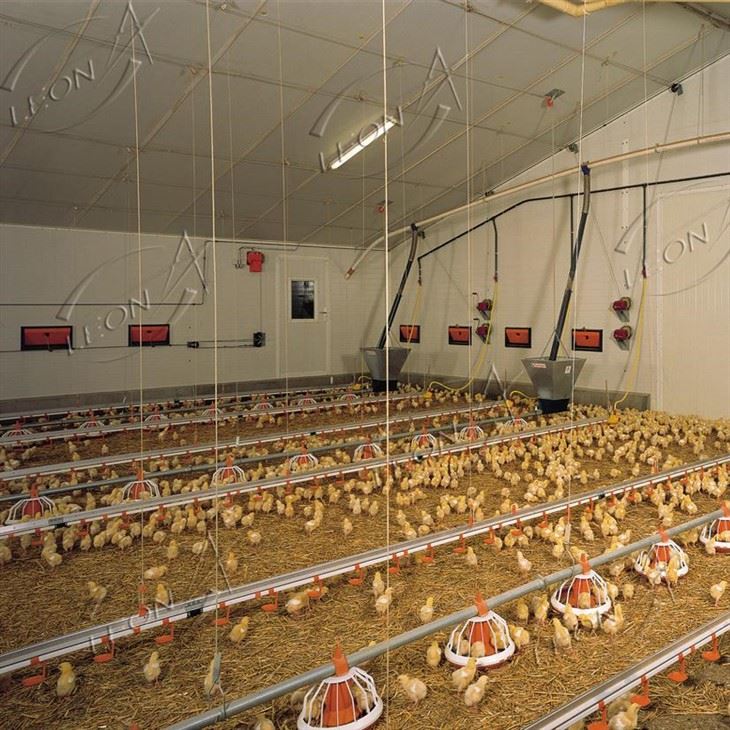

Chicken Farm Broiler Floor Raising Layout

1. Main Feed line system

Include PVC pipes, Augers, Motor,  Big Hopper and Feed Silo is optional

Main Feed Line

#75 Auger from South Afria
#90 PVC Pipes
# Wanxin Brand Drive motor

Feed Silo

From 5 tons to 35 tons is Optional.

2. Automatic Pan Feeding System

1) High-quality special driving reduction motor
Power: 0.75kw-1.5kw, 380v, 50hz, 3phase
2) V-shaped Hopper
Bin Volume: 115L, Hopper volume: 38L
Material: Hot-dip galvanized sheet
3) Feeder pan: 14/16 grills, different types pan is optional

3. Automatic Nipple  Drinking System

1) Drinking lines: 15nipples/3m, 12nipples/3m

2) Square pipes, Round pipes, Aluminium support pipes is optional

3) Pressure regulator: Good regulating stability,
high switching performance
4) Nipples can be movable in 360 degrees, easy to drink

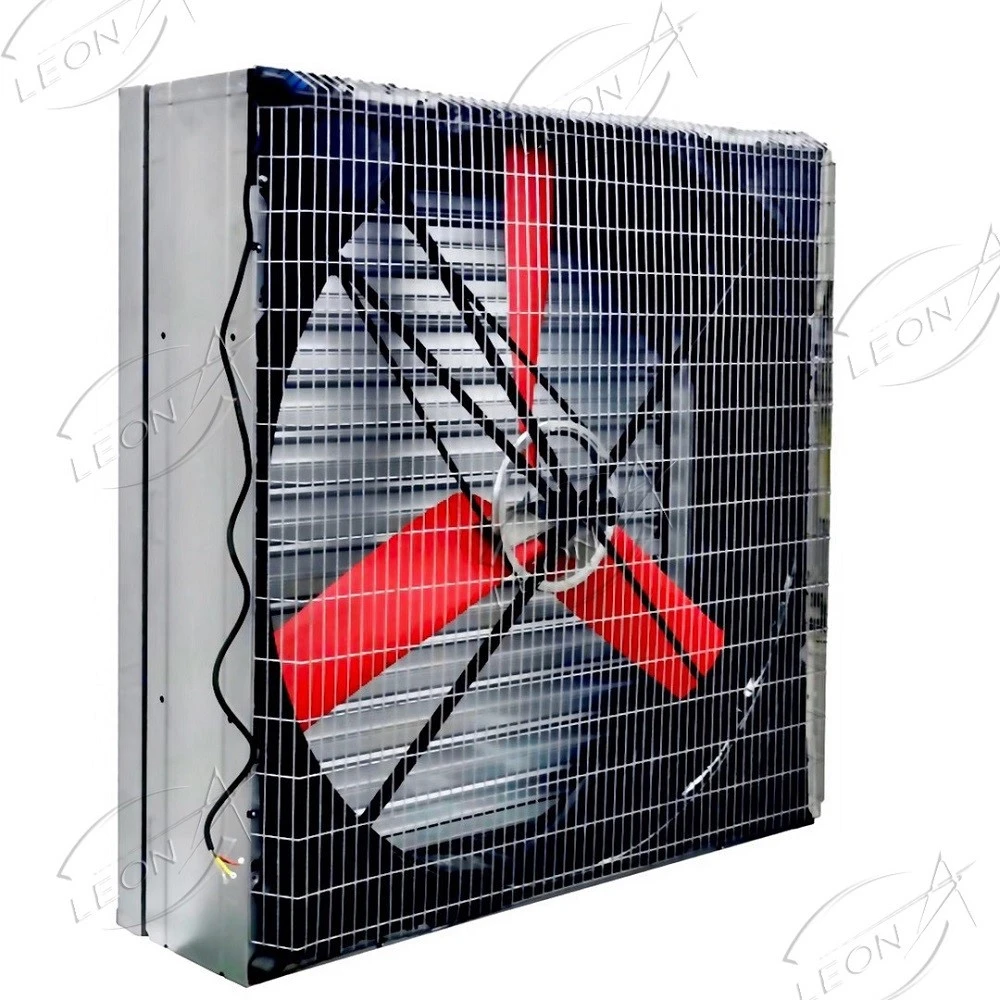

4. Ventilation Fan System

1.  Box fan and Cone fan is optional

2. Size: 57inch, 54inch, 50inch, 36inch, 24inch is optional

3. Motor:  Siemens brand, WEG brand, Chinese brand is Optional

4. Blades:  1) material: NSDCC, Nylon, Stainless steel is optional

                    2)3blades, 4 blades, 5 blades, 6 blades is all optional.

5. Cooling Pad System

 1. Four color can be choose: Brown, Green, Black, Brown&Green

 2. Three material frame can be choose:
    1) Aluminum Alloy Frame

    2) 430 stainless steel frame

    3)Galvanized steel frame

3. Plastic cooling pad is optional.

6. Air Inlet System

SIDE WALL AIR INLET (BLACK)

1. Size: 600*320*160mm, 690*310*160mm

2. Material: ABS plastic

3. Opening mode: Driving opening

4. Air flow capacity: 1800 m3/h-2000 m3/h

SIDE WALL AIR INLET (WHITE)

1. Size: 800*360*110mm, 1200*360*110mm

2. Material: ABS plastic
3. Opening mode: Driving opening
4. Air flow capacity: 3800 m3/h-5100 m3/h

7. Heating System

Gas heater, Diesel heater, Electric heater is all Optional

Gas Heater

1. Brand: Damly Brand

2. Heat power is 66KW

3.Blow fan motor is: 0.37kw, 220v, 50/60hz

Diesel Heater

1. Heat output: 38760 Kcal/h

2. Power: 250w, 220v/50hz

3. Airflow: 1100 m3/h

4. Tank Capacity: 53L

Electric Heater

1. Heat Power: 5KW-30KW

2. Fan Power: 90w-550w

3. Air Flow: 1000 m3/h-5800 m3/h

8. Environment Control System

 1. Environment controller : Agrologic brand: VP-8S, T607, T616, ImagineII, VP-TM 30 is optional

2. Control box inside component : Chinese famous brand: CHINT

 3. Temperature sensor: 2 pcs Humidity sensor: 1 pcs
