Description
Technical Parameters
Products Description

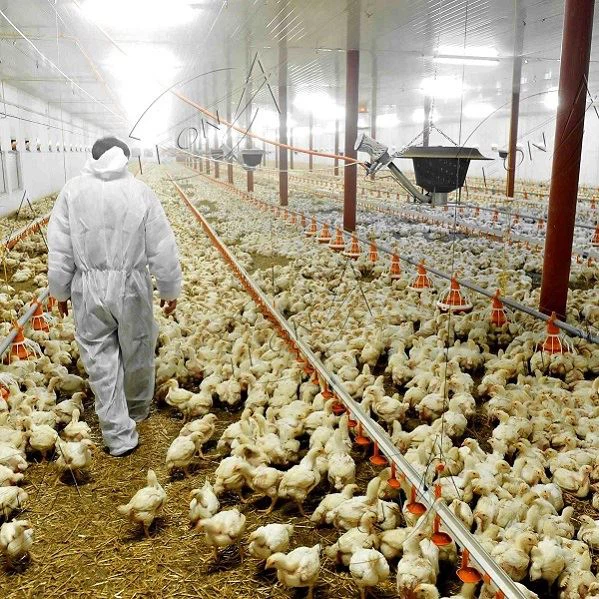

Fully automatic complete broiler floor raising system
Fully automatic complete broiler floor raising system
4. Ventilation system 5. Cooling pad system 6. Environment control system
7. Foggy system 8. Heating system 9. Plastic slat system
Main Feed Line
Main Feed Line
#75 Auger from South Afria
#90 PVC Pipes
# Wanxin Brand Drive motor
#90 PVC Pipes
# Wanxin Brand Drive motor

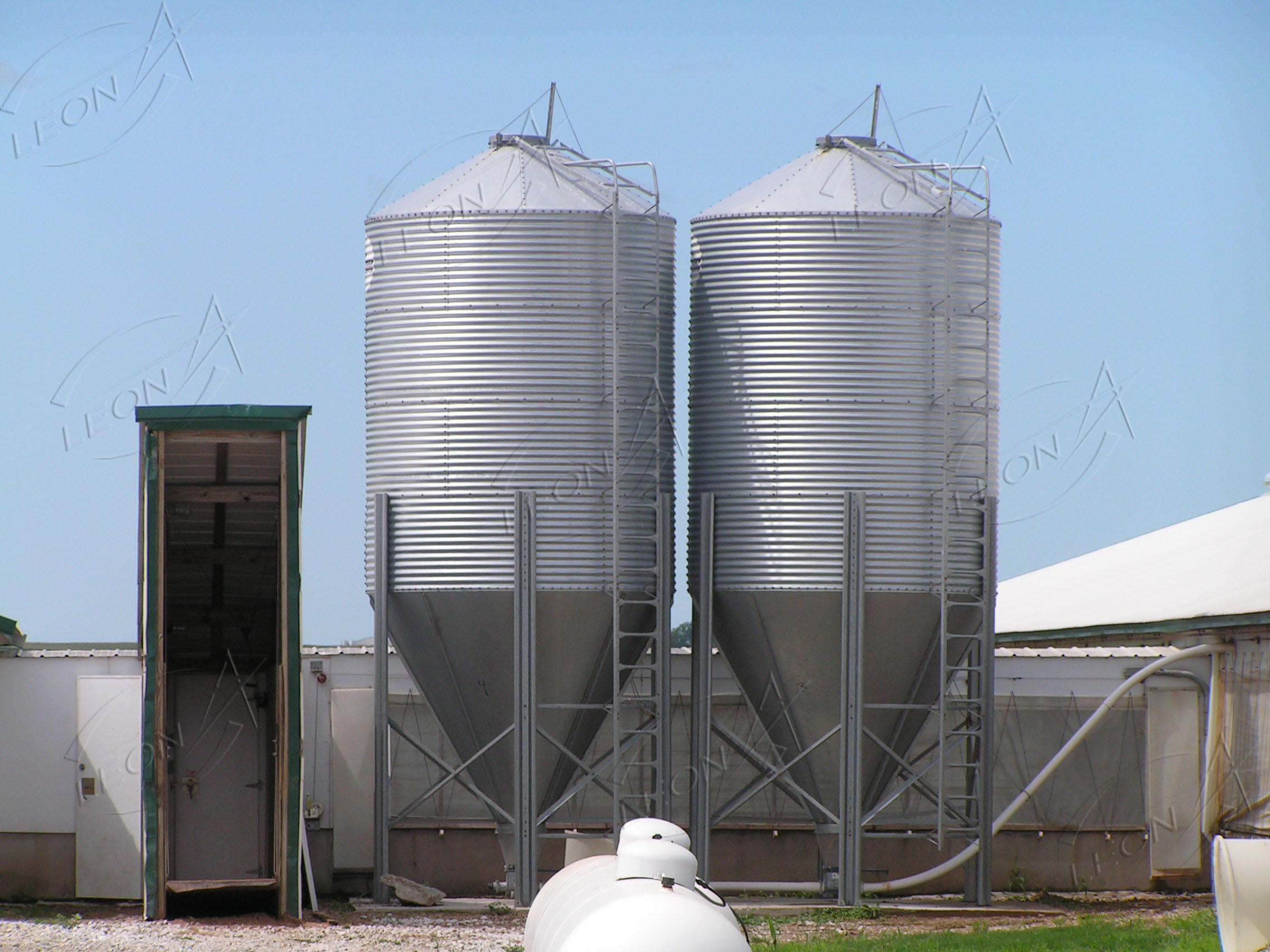

Feed Silo
Feed Silo
From 5 tons to 35 tons is Optional.

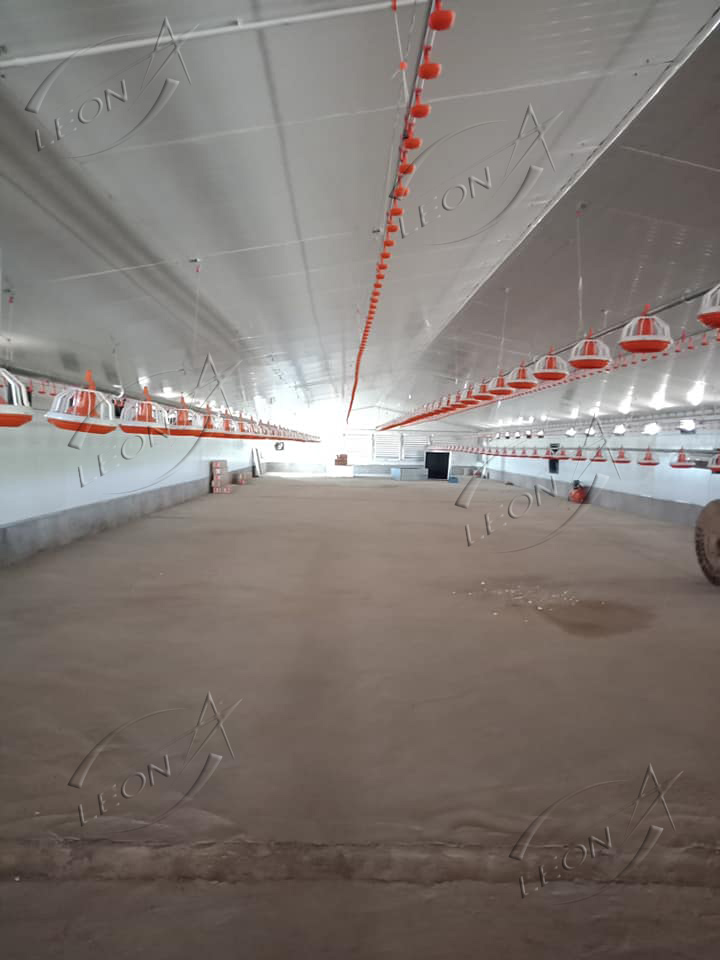

Pan Feeding system
Pan Feeding system
1) High-quality special driving reduction motor
Power: 0.75kw, 380v, 50hz, 3phase
2) V-shaped Hopper
Bin Volume: 115L, Hopper volume: 38L
Material: Hot-dip galvanized sheet
3) Feeder pan: 14/16 grills, 4pans/3m
Nipple Drinking system
Nipple Drinking system
1) Drinking lines: 15nipples/3m, 12nipples/3m
2) Pressure regulator: Good regulating stability,
high switching performance
3) Nipples can be movable in 360 degrees, easy to drink
Ventilation Fan system
Ventilation Fan system
Function:
Box fan and Cone fan can be optional.
Ventilation fan system controls poultry house inner environment, provides fresh air, proper humidity for your chickens, ensuring your broilers provide
maximum production.

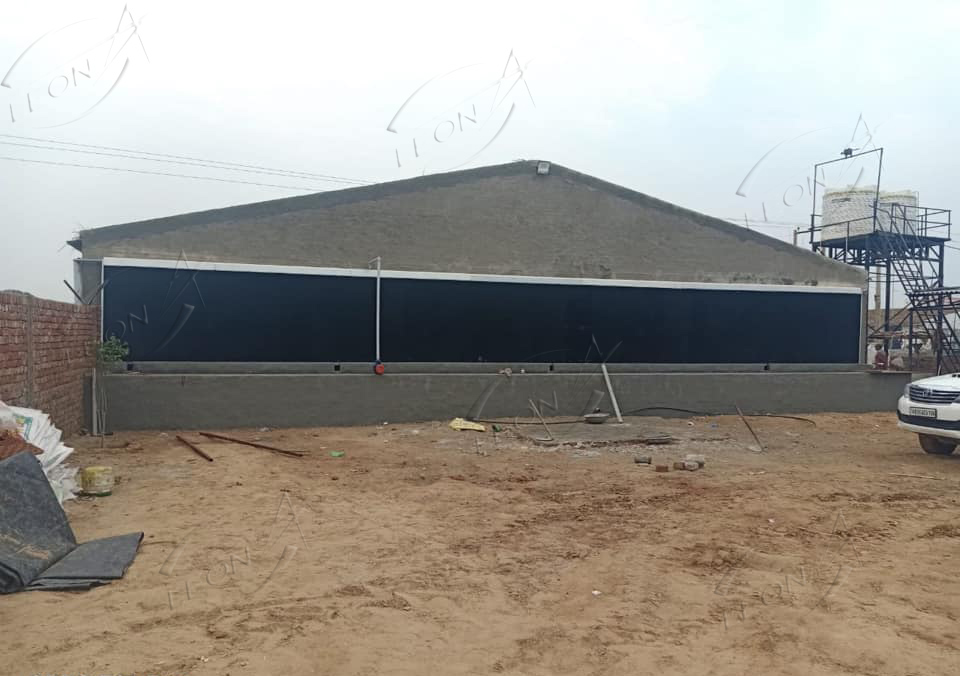

Cooling Pad system
Cooling Pad system
Function:
Black coating pad with Aluminium alloy frame.
When the air goes through cooling pads, the heat will
be taken down by the evaporation of water. So the air
will be cooled before going into your poultry farms.
Environment Control system
Environment Control system
Option 1: Agrologic Brand, imported from Israel, Model: T607/T610/T616
Option 2: Our own brand, also with good function.
Plastic slat system
Plastic slat system
1) Slat size: 1200mm*500mm* 40mm
2) Slat Material: 100% Pure PP
3) Beams: PVC, Height: 9cm/12cm
4) Supporting legs: ABS
Foggy system
Foggy system
2) Pipes: PE, Diameter:10mm
3) Nozzles: Pure copper
4) Nozzle base: Stainless steel
