Drawing Design
Products Description
Specification
|
Model |
3 tiers 4 doors |
3 tiers 5 doors |
4 tiers 4 doors |
4 tiers 5 doors |
|
Cage Size |
1.88m*2.1m*1.5m |
1.95m*2.1m*1.5m |
1.88m*2.3m*1.8m |
1.95m*2.3m*1.8m |
|
Capacity |
96 birds |
120 birds |
128 birds |
160 birds |
Layer Battery Cage System Model No. designation:
LN" – Leon brand;
"A" – A shape;
"34" – 3 tiers 4 nests (doors);
"L" – Large size
|
Model |
Overall size (L×W×H) |
Nest per strip |
Total nests (doors) |
Size of the nest |
Chickens/nest |
Capacity (Birds/set) |
|
|
LN-A34 (Hot sale) |
1.88 x 2.1 x 1.5 m |
4 |
24 |
0.47 x 0.35 x 0.37 x 0.32 m |
4 |
96 |
|
|
LN-A45 (Hot sale) |
1.95x 2.4 x 1.95 m |
5 |
40 |
0.43 x 0.38 x 0.38 x 0.33 m |
4 |
160 |
|
|
LN-A35 |
1.95 x 2.1 x 1.5 m |
5 |
30 |
0.43 x 0.38 x 0.38 x 0.33 m |
4 |
120 |
|
|
LN-A44 |
1.88 x 2.4 x 1.95 m |
4 |
32 |
0.47 x 0.35 x 0.37 x 0.32 m |
4 |
128 |
|
|
Material: Mild steel Q235; |
|||||||
|
Surface Treatment and Service Life |
Electro galvanized, Zinc coating ≤ 8 g/m2, (7-10 years); Hot-dip galvanized, Zinc coating: ≤ 275 g/m2, (15-20 years); PVC coated (7 years) Notes: The service life depends on the surrounding environment. |
||||||
Cage Frame
Material: Hot Dip Galvanized
Advantage: Highly Anti-rust
Feeder Trough
Material: Original PVC
Length: 4 m/pcs
Advantage: Anti-age
Water Supply System
Material: High-strength PVC
Tube
Advantage: Highly Anti-rust
No Leaking
Lowest Water Waste
Long Service Life
Cage Mesh
Material: Hot Dip Galvanized Steel
Advantage: Long Service Life and Anti-age
Automatic System
Cage and Frame Automatic Feeding System
Automatic drinking System Automatic Manure Cleaning System
Automatic Egg Collecting System Egg Belt
Our factory & quipment
WEIFANG LEON MACHINERY, is located at Qingzhou city, Shandong province, factory area has over 10,000 m2. Leon has more than 15 years chicken raising experirence, which are professional engaged in the research, development, sale and service of complete poultry equipment, can provide Turn-key project and total solutions. Product include Pig raising system,Chicken raising system, as well as energy-saving climate control system. Also provide project design, CAD drawing , steel structures, and full services.

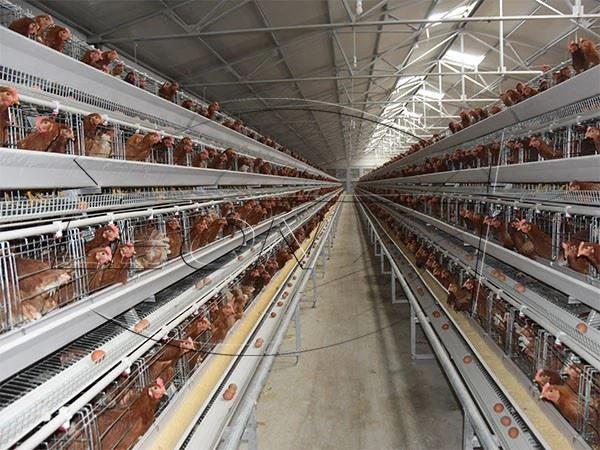

Advantages of A type automatic chicken equipment:
More chicken quantity per house
Higher feed-to-egg ratio-auto feeding system
Higher Feed-to-Egg Ration means your chickens eat less feed but lay more eggs.
Our auto feeding system can help save your chicken feed.
Save chicken feed with feed uniform and feed returning device
Save feeding time with automatic system
Save labor cost
Lower Mortality- Auto manure cleaning system
With auto manure cleaning machine, you can make sure clean and healthy environment for chickens, reducing mortality rate.
Clean chicken manure timely can reduce ammonia gas that can cause chicken's respiratory diseases, reducing mortality.
Clean chicken manure for three times, ensuring the belt is clean.

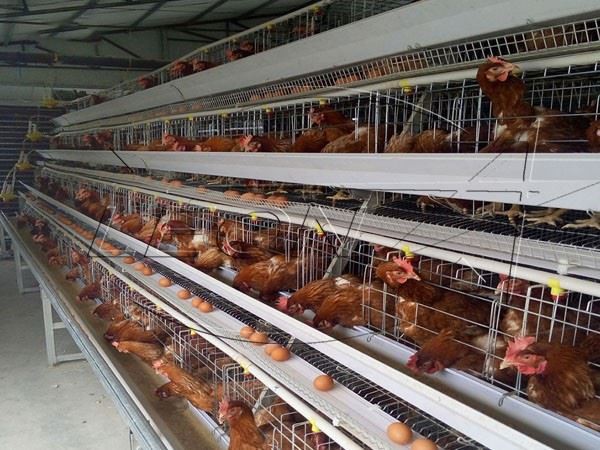

Lower Egg Broken Rate-Auto Egg Collection System
With automatic egg collection system, you don't need workers to pick up eggs by manual, so you can:
Reduce egg broken rate (less than 0.5%)
Save labors and time
Make sure clean eggs
Longer service life-Auto cage system
Cage mesh: hot dipped galvanized, lifespan is 15-20 years
Cage stand: Zinc Aluminum Magnesium surface treatment, better anti-corrosion quality than manual cage stand. And stand is made of U type steel by molding machine, no welding point, more stable.
More reasonable cage design: Bigger cage nest size, so you can raise more chickens with same area.
Who needs A type automatic layer equipment?
For starters who want a fully automatic farm:
Compared with H type auto equipment, A type is more cost-effective
Compared with H type auto equipment, A type is easier to start and manage
For farmers who want to upgrade the farm:
Compared with conventional cage, A type auto cage can save labor cost
Compared with conventional cage, A type auto cage can save time.
