Products Show
Specification
|
Model |
Outer size |
Blade Diameter |
Motor rotational speed(rpm) |
Air volume (m3/h)(0Pa) |
Noise decibels |
Motor |
|
EDC54 |
1480*1480mm |
1370mm |
1400 |
51100 |
≤65 |
1.5kw/2HP |
|
EDC50 |
1380*1380mm |
1300mm |
1400 |
47300 |
≤65 |
1.3kw/1.7HP |
|
ED50 |
1380*1380mm |
1300mm |
1400 |
44000 |
≤65 |
1.1kw/1.5HP |
Product Details
Blade:
The fan blade is made of 66 type nylon mixed with 30% FRP,with excellent hardness and toughness, no deformation and good
stability.Using high-density aluminum alloy cast aluminum wheels, the size is standard,wear-resistant, more sturdy.
Shutter:
Use 275g/sqm hot galvanized iron for shutter and frame. Use magnet on the shutter connecter and after proportioning the weight,
the louver is balanced. Opening and closing shutters are smooth and close in good Condition.plastic parts, not loose and
fall off, longer service life
Frame:
1.0mm thickness 275g/sqm hot galvanized iron for frame. Use the mold to make frame, which is processed by the bending machine, so
that the frame size is more precise, the error is small, and the assembly is convenient.
Pole&Protect nat:
The square guard is welded with 2.2mm hot-dip galvanized wire.The circular protective net is welded with 3+5mm iron wire, and then
sprayed with protective paint Columns, etc. are processed from iron plates, post-electrophoresis treatment.These products are made
by mould and have standard size.Corrosion resistant and long service life.
Belt:
MITSUBOSHI and PIX available
Screw:
Individually customized high-strength Dacromet standard parts, easy to use, corrosion-resistant and lon
Delivery
WEIFANG LEON Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.Global service.

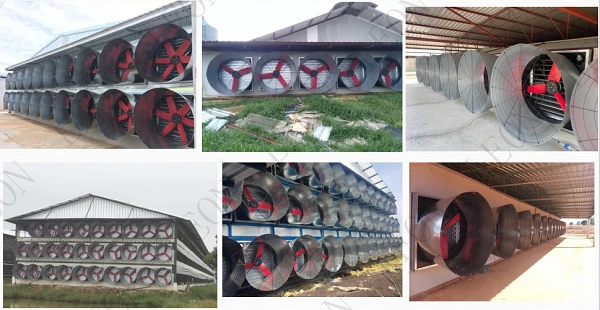

Installation Case
